| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

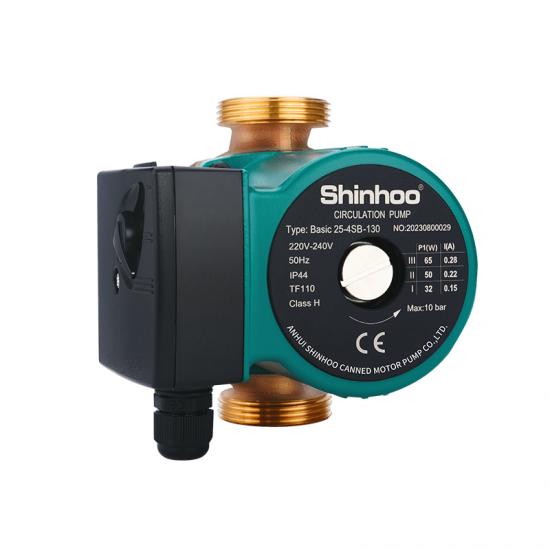

Basic 25-4SB | 25 | 1.6 | 2.6 | 4 | 115/230 | 50/60 | 65/50/32 | 130 | G1 1/2 |
 |
Master H 25-9 Pro | 25 | 4.5 | 6.5 | 9 | 220~240 | 50/60 | 95 | 130/180 | G 1 1/2 |
 |
Basic 25-5S | 25 | 1.8 | 3.2 | 5 | 115/230 | 50/60 | 85/60/40 | 130/180 | G1 1/2 |
 |
Instant Pro 15-1.5 | 15 | / | / | 1.5 | 230 | 50/60 | 8 | 80 | G1/2 |
 |
Basic 20-6SN | 20 | 1.8 | 3.6 | 6 | 115/230 | 50/60 | 100/70/55 | 130/150 | G1 |
 |
Mega S 40-12F | 40 | 14 | 7 | 12 | 220~240 | 50/60 | 460 | 291 | DN40/Flange |
 |
Master SD 20-4 | 20 | 1.6 | 2 | 4 | 220~240 | 50/60 | 25 | 130 | G1 |
|
Mega S 40-15F | 40 | 16 | 9 | 15 | 220~240 | 50/60 | 680 | 291 | DN40/Flange |
