| Foto | Modelo | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

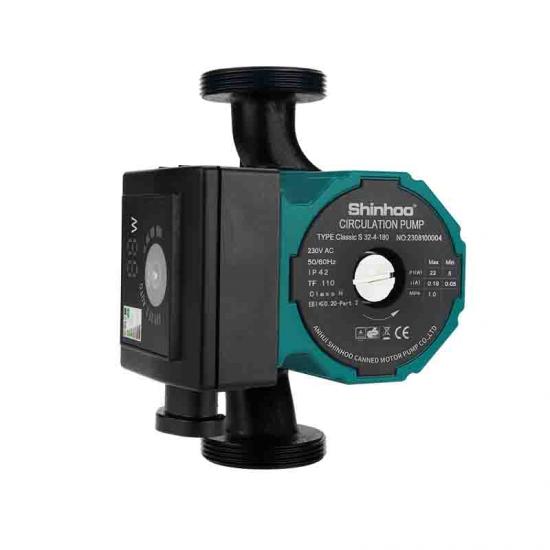

Classic S 32-4 | 32 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 180 | G2 |
 |
Mega 40-6F | 40 | 4 | 3.7 | 6 | 230 | 50/60 | 90 | 220 | /Flange |
 |
Master H 25-7.5 | 25 | 2.2 | 4.7 | 7.5 | 220~240 | 50/60 | 60 | 130/180 | G 1 1/2 |
 |
Basic 25-16 | 25 | 7 | 12.5 | 16 | 230 | 50/60 | 700 | 230 | G1 1/2 |
 |
Basic 65-5F | 65 | 15 | 3 | 5 | 230 | 50/60 | 700 | 280/340 | DN65 |
 |
Basic 25-20 | 25 | 9 | 14 | 20 | 230 | 50/60 | 1000 | 230 | G1 1/2 |
 |
Basic 50-12F Pro | 50 | 16 | 8 | 12 | 220~240 | 50 | 1000 | 280 | DN50 |
 |
Basic 50-12F | 50 | 15 | 9 | 12 | 230 | 50/60 | 1000 | 280 | DN50 |
